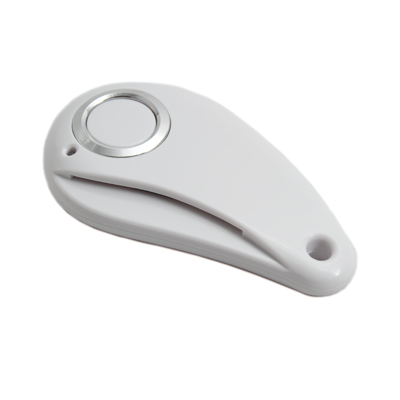

SCR1T
Label: | IC Card Reader |
---|---|
Specification: | SCR1T&SCR10 Contact IC Card Reader.pdf |
Description: | Contact IC Card Reader |
Product Information
- Support EMV2000 L1 specification.
- Support the Universal Serial Bus Specification, version 1.1.
- Based on ISO7816 implementation
- Support PC smart card industry standard – PC/SC 1.0
- Support Microsoft Smart Card for Windows
- Meet Microsoft WHQL USB smart card reader requirements
- Include WDM driver to work on Windows 98 and Windows 2000
- Implemented as an USB full speed device with bulk transfer endpoint
- Built-in 3.3V regulator for single 5V operation
- Support EEPROM for USB descriptors customization, including VID/PID
- Based on USB-CCID class, short APDU level
- Compatible with Microsoft USB-CCID driver
- Mini USB 2.0
