Details

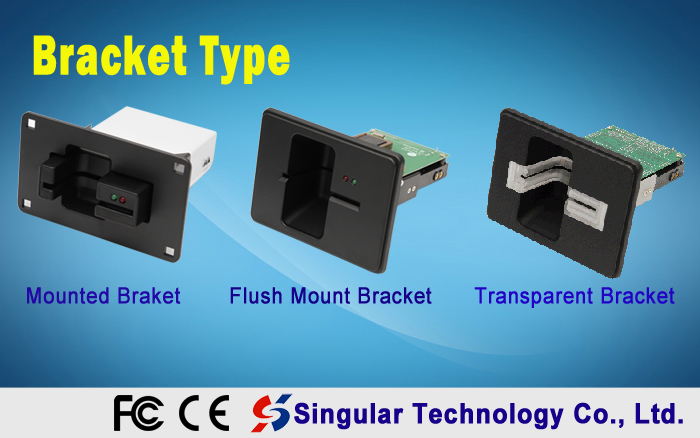

SCR35T Bracket Type
Label: Hybrid Card Reader
Specification: SCR35 Series SpecV1.3.pdf
Description:

SCR35T Module type Manual Insertion USB card reader driver with Transparent Bracket

Product Information

SCR35T Series



● 3-in-1Hybrid smart/memory/magnetic card reader



● Manual bi-directional movement (insertion or removal) to read the magnetic card



● IC card landing contact



● USB interface



● On-board flash to upgrade firmware easily

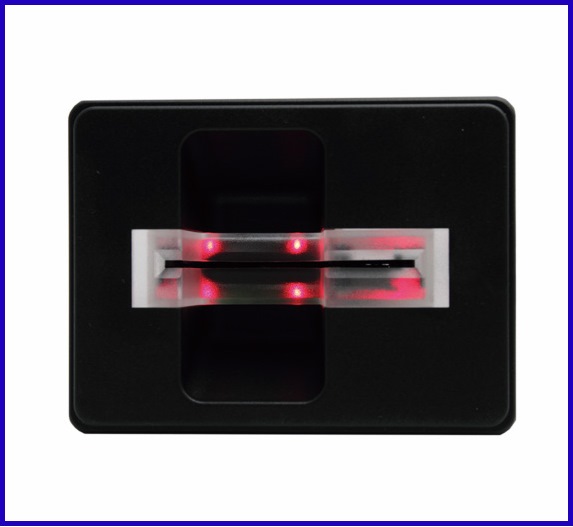

● Card insertion responded by LED



● Compliant with ISO7811, ISO7816, EMV 2000 Level 1



● PC/SC standard (Pass the six-card test provided by Microsoft’s WHQL test)



● Plug & play installation for Microsoft Windows



● Drivers, demo programs and libraries for Microsoft Windows



Version List

Mode No.

Smart Card

Memory Card

Magnetic Card

3 Tracks

RS232

USB

CCID

USB

VCOM

USB

HID

USB

 Direct IO

SCR35X (R)



SCR35X (UC)







SCR35X (UV)





SCR35X (UH)





SCR35X (UI)







Product Description

Item

Description

 Smart card standard

 ISO7816 T=0,T=1, EMV 2000 L1 compliant

 Magnetic card standard

 ISO7810~7813 triple‐track conformance

 Memory card standard

 SLE4442/4432, SLE4428/4418, AT24CXX

 Interface

 RS232 ( 9600 n 8 1 )

 USB1.1 & 2.0 ( CCID, HID, VCOM, Direct IO )

 Driver and demo program

 Microsoft XP, VISTA, 7, 8 &10

 Operation temperature

 -10°c ~ 50°c

 Cable length

 120cm

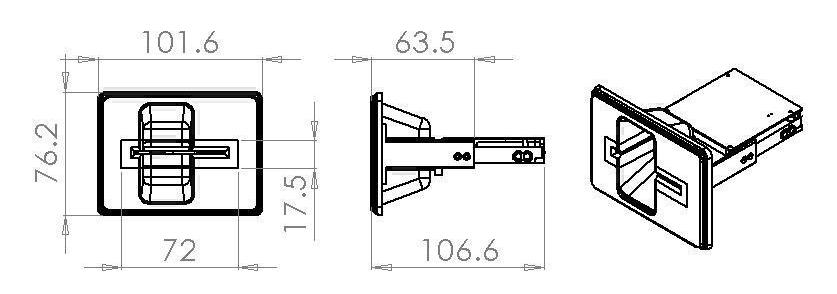

Detailed Image







Packing & Delivery
